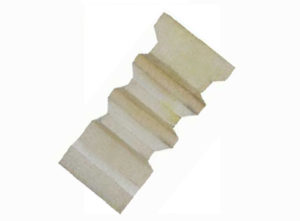

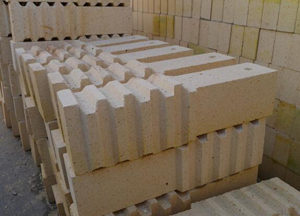

Anchor Refractory Brick
Anchor refractory brick is a kind of refractory brick for industrial furnace top construction. anchor fire brick includes cylinder formed by suspended end and anchoring body, and there is grooves distributing on the bricks body. Its refractoriness is over 1700℃. anchor refractory block can be used in all kinds of industrial kilns. and anchor firebrick is widely used for the roof and walls of the heating furnace with features of high strength, good mechanical performance and good anti-strip performance.
Anchor Refractory Brick Description
Anchor blocks include suspended bricks and perforaled tiles with forming processes of two types of mechanical pressing and pouring forming. according to customers’ operating requirements, choose the basically the same structure materials with castable refractory of furnace lining through firing in the high temperature. anchor block has high strength, good erosion resistance property and good spalling resistance, which have the basically the same expansion with furnace lining refractory castable.
Properties of Anchor Refractory Brick
.High refractoriness,
.High strength,
.Good spalling resistance,
.Low thermal conductivity,
.Good mechanical performance,
.Excellent thermal shock resistance.
Manufacturing Process of Anchor Refractory Brick
Anchor brick is made of high quality of bauxite as the raw materials containing 48~80% alumina content and formed through pressing and firing in the high temperature. anchor blocks are mainly used in thermal furnaces such as heating furnace, coal chemical industry kiln and electric furnace top.
Rongsheng Refractory Anchor Refractory Brick Specifications
| Anchor Refractory Brick | |||||||
| Item | RS – 85 | RS – 80 | RS – 75 | RS – 65 | RS – 55 | RS – 48 | |
| Al2O3 % | ≥85 | ≥80 | ≥75 | ≥65 | ≥55 | ≥48 | |
| Apparent Porosity % | ≤23 | ≤22 | ≤23 | ≤23 | ≤22 | ≤22 | |
| Cold Crushing Strength Mpa | ≥55 | ≥55 | ≥53.9 | ≥49 | ≥44.1 | ≥39.2 | |
| Refractoriness ℃ | ≥1790 | ≥1790 | ≥1790 | ≥1790 | ≥1770 | ≥1750 | |
| Refractoriness Under Load 0.2Mpa ℃ | ≥1550 | ≥1530 | ≥1520 | ≥1500 | ≥1470 | ≥1420 | |
| Permanent Linear Change | 1500℃*2h | -0.4~0.1 | -0.4~0.1 | -0.4~0.1 | -0.4~0.1 | -0.4~0.1 | * |
| 1450℃*2h | -0.4~0.1 | ||||||
Application of Anchor Refractory Brick
Anchor fire blocks are widely used for the roof and walls of the heating furnace with features of high strength, good mechanical performance and good anti strip performance. and also can be used in thermal furnaces such as heating furnace, coal chemical industry kiln and electric furnace top and etc.
Anchor Refractory Brick Manufacturer from RS Refractory Factory
RS refractory factory is a professional anchor refractory brick supplier that established in the early 90s of twenty century. RS refractory factory has specialized in anchor fire brick for more than 20 years. if you have some demand of anchor refractory block, or have some questions on anchor firebrick about physical and chemical indicators, please contact us for free. and Rs refractory factory as a professionalacid anchor refractory bricks manufacturer in china, has some competitive advantages as follows:
Competitive Price: Make the products competitive in your market,
Abundant Experience: Prevent cracks and twist in bricks,
Different Moulds: Save mould fees for you,
Strict Quality Control: Meet clients’ quality requirement,
Large stocks: Guarantee prompt delivery,
Professional Packing: Avoid damage and secure the goods in transportation.
